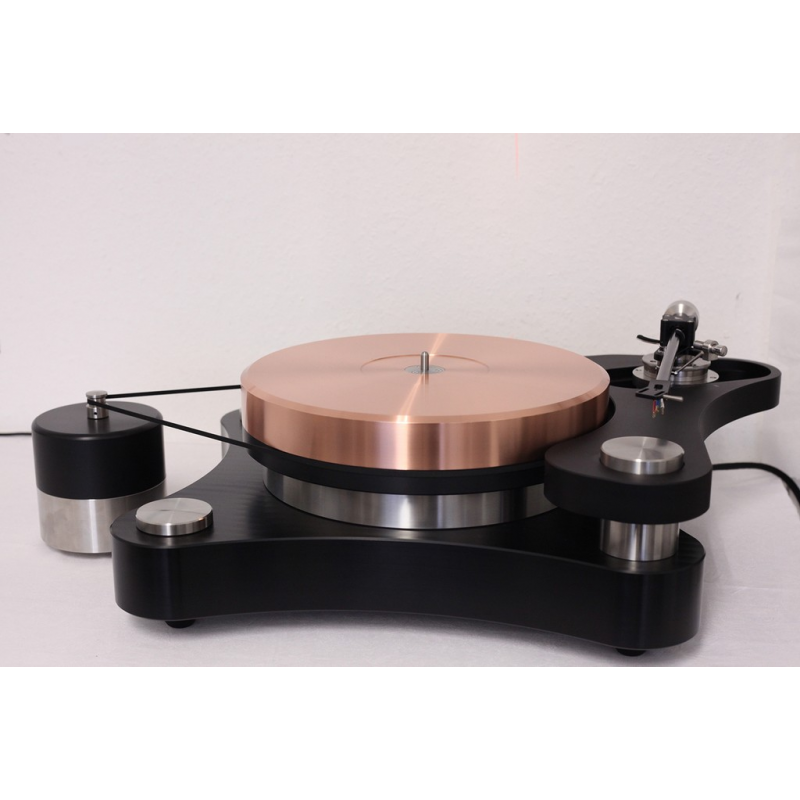

Raven AC Anniversary
Chassis 30 kg
Platter: 20 kg
Motor unit: 3 kg
Motor control unit: 2 kg
550 mm x 400 mm (W x D)
Motor diameter: 119 mm
Total footprint: 600 mm x 400 mm (W x D)
Material: 60 mm TW ACUSTIC's proprietary Delrin-based compound, stainless disk rigidly screwed to chassis.
Three, stainless steal, height adjustable
Material: 40 mm copper in combination with 20 mm of our special compound let into and screwed together with the copper platter.
Bronze bearing, 16 mm hard metal shaft with ball on top, running on a thrust washer of 'Material S ® (green)'. This is a special low-pressure PE based material with a very low coefficient of friction and very high wear resistance, giving a long maintenance free life without the need for additional lubrication. Bushing is machined exactly to fit the bearing with zero float, yet remains replaceable.
Case made from stainless steel and delrin.
Motor control unit:
controlled by a microcontroller, ready for 3 motor drive
Up to three tonearms may be fitted.
