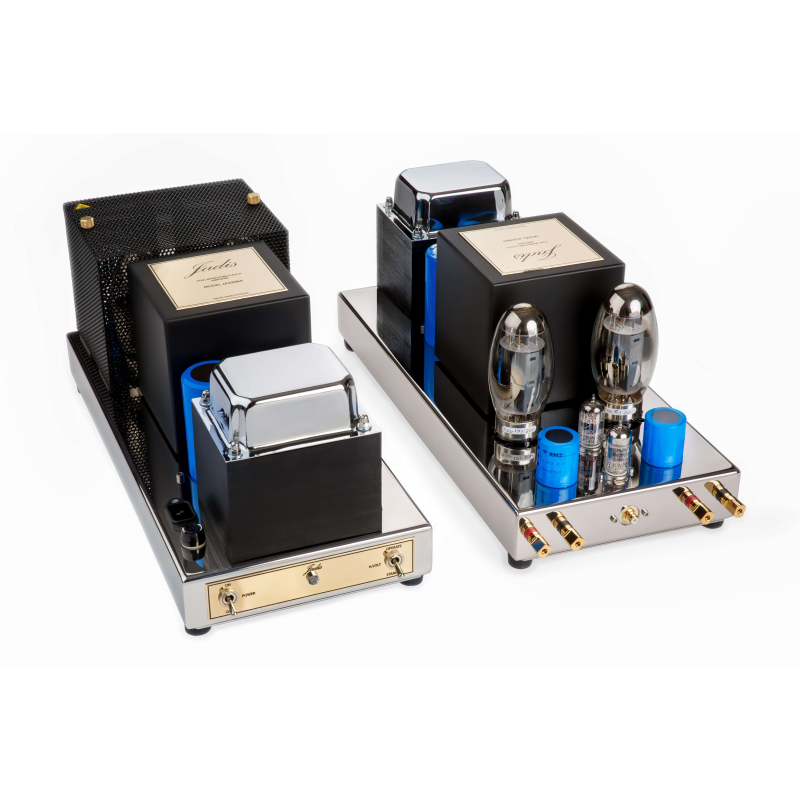

JA 30 MkII / JA 30 BAL MkII

96.575,00 kr.
Inkl. moms
96575
Levering indenfor 5-7 dage

This dual mono up to 45 watts in pure class A amplifier incorportes all the unique technical and sonic innovations which have propelled its predecessors into audio legend.

Rør: EL34 - 6CA7 - KT88 Electro Harmonix
Antal


The MkII version allows the use of the KT150 new pentode tube.

The JA30, a pure class A 45 watt per side amplifier, is a very effective monoblock. Each tube is protected by a fuse and is self-biasing even when tubes are replaced, no adjustments are necessary (but the tubes have to be paired). Output tubes can be either 6550s or KT88s and the amps are designed to deliver full power at 15Hz, making for extraordinary bass.

When when switching from KT150 to another type of power tube such as : EL34, 6CA7, KT88, KT90, KT120 & 6550 a small modification has to be made inside the unit.

REFERENCES

BIAS: Automatic BIAS – no adjustment

Input Impedance: 100 K Ohm

Bandwidth: 20 – 20000Hz @ 0 dB

Tubes: per channel

1 x ECC82 / 12AU7

1 x ECC83 / 12AX7

2 x 6CA7 – 6550C – KT88 – KT120 – KT150

Dimentions: 2 chassis each 46 x 21 x 21 cm.

Weight: 22 kg per mono amp.
